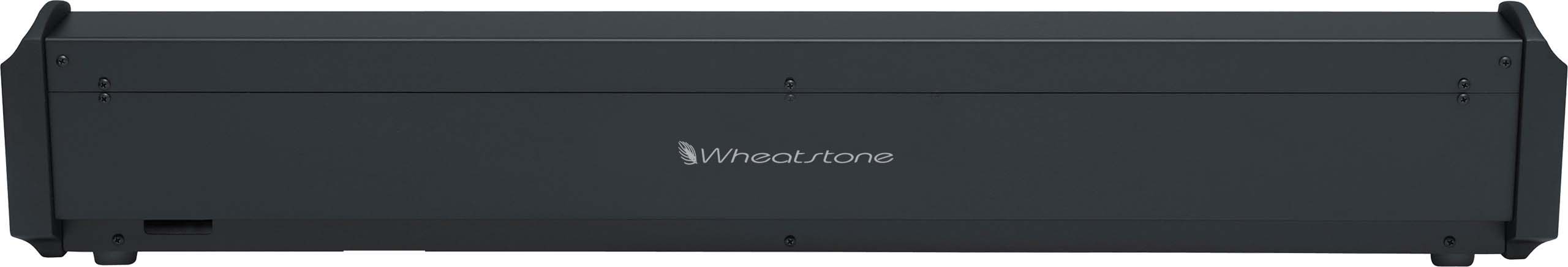

IP16-HEADON 2 IP16_Rear IP-12_rear_view

IP-16

Not Rated Yet Manufacturer Wheatstone Email
Sales price $10,868.00
Sales price without tax $10,868.00
Base price $10,868.00
Base price for variant $10,868.00
Variant price modifier:
Base price with tax
Salesprice with discount
Discount
Tax amount
Current Stock Level:
0
  • Description
  • Reviews

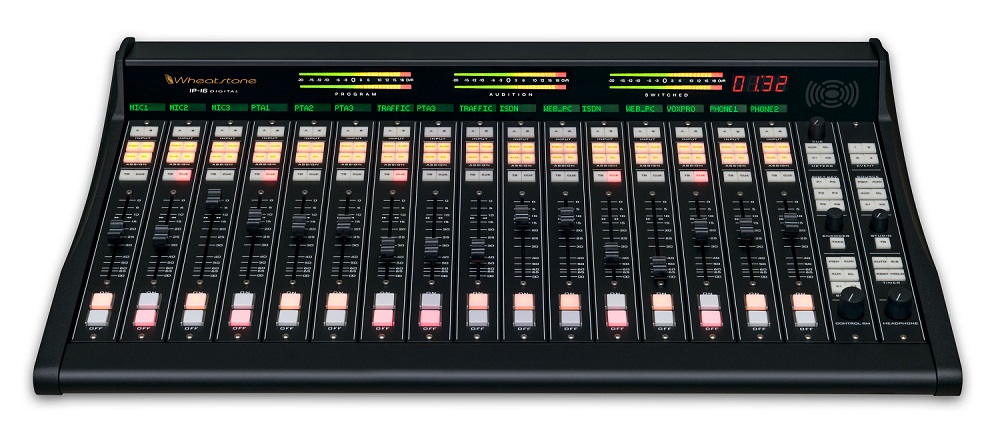

The IP-16 is a 16-fader control surface that taps into the power of the WheatNet-IP Intelligent Network through its IP88CB console audio BLADE engine to make a perfect low-cost, small-footprint solution for any studio. Each of its 16 input modules is equipped with an LED source name display and an A/B source selector; sources can be set via a rotary encoder in the master section. Each input module has access to four program busses and has cue and talkback switches. A 100mm long-throw fader and lighted channel ON/OFF switches round out the module.

Includes:
16 Fader IP-16 frame with;
16 IN-12 Input Module (p/n 009000)
1 CR-12 Control Room Monitor Module (p/n 009001)
1 SC-12 Studio Monitor Module (p/n 009002)
1 SPS-A3 Power Supply (p/n 980043)
1 IP-16 User Manual (p/n# 009099)

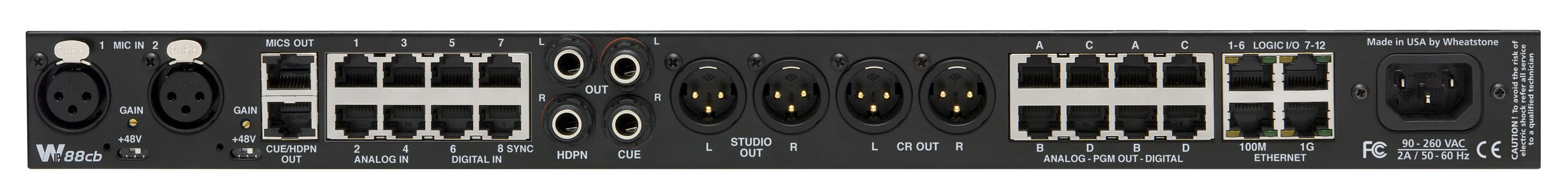

1 ip88cb Console Blade Mix Engine (p/n 011005)
with 8 mono (4 stereo) analog line inputs, 2 Mic preamps (patchable to 2 analog line inputs),
4 AES inputs, AES outputs, 4 analog outputs, Cue and headphone outputs on RJ45 and 1/4” jack,
Control room and studio monitor outputs on XLRs, 12 programmable logic ports.

Additional Inputs and Outputs can added with ip88a, ip88d, ip88ad, ip88m, and ip88ve I/O Blades through gigabit
Ethernet network.

There are yet no reviews for this product.
